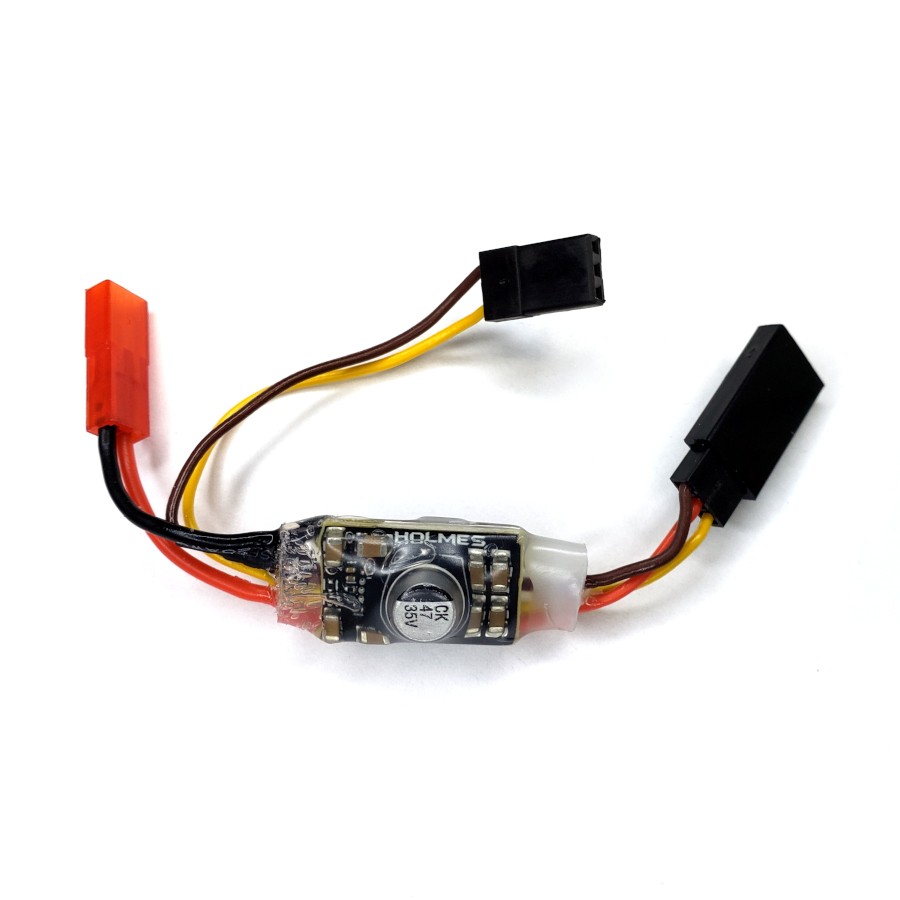

Holmes 8.4v 20A BEC Team Bypass

Holmes 20a 8.4v BEC Team Bypass

• 2-6s lipo input
• 8.4v output
• 20a burst
• 12a continuous
• Fully waterproofed
• 8 grams
• 30mm x 14mm x 13mm PCB (waterproofed)

The Holmes 20a BEC is a high performance voltage regulator for ANY R/C need!  It is designed with ultra high 4mhz frequency, very low dropout, fast load response, and small footprint. It can be run in parallel with itself for larger loads, with no special wiring needed.

The Team Bypass version of the Holmes 20a BEC is wired to power ONE servo directly with 8.4v, it does not power the radio too.  This creates a high power servo system compatible with radios that do not accept 8.4v, and is functional with systems where the ESCs internal BEC is already powering your radio and other accessories such as shift servos and light kits.

1. Install the BEC male RX plug into the radios SERVO channel (typically ch1)
2. Plug SERVO male RX plug into the BECs female RX plug
3. Male JST plug provides power to BEC
