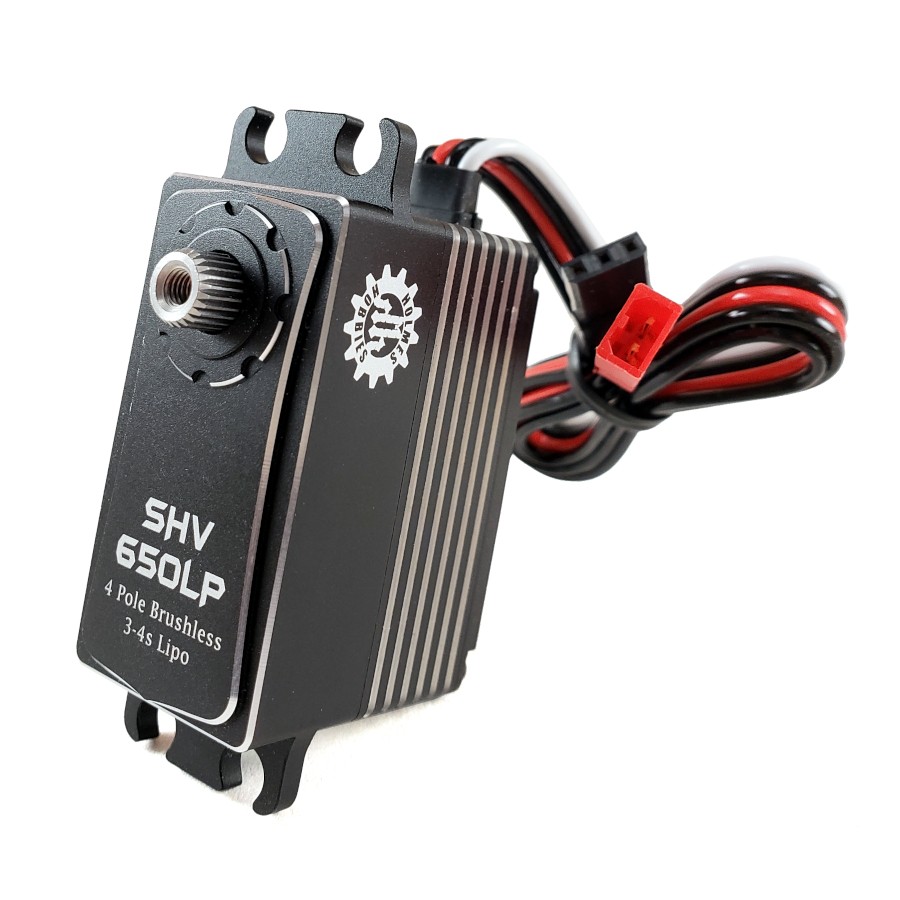

SHV650LP Servo

The SHV650LP is a compact yet extremely powerful direct power servo!  It is designed for crawlers, whether you are out on the trail or competing.  The 5 gear drivetrain with 4 pole brushless motor gives ultra fast speeds, high torque, tucked into a low profile package! With direct power using 3 to 4s lipo, you do not need a powerful external BEC to use this servo.  The highest quality components and electronics give this beast a 1 million cycle rating.

The SHV650LP has additional built in overvoltage protection.  We have found that 4s lipo batteries smaller than 1000mah can cause very high voltage spikes, because they cannot absorb braking current as well as larger packs.  For extra protection, you can run our 4s Lipo Direct Power Servo Protector.  However, this is not required for warranty coverage.

Specifications:

• 1 year warranty
• 1 million cycle rated
• Waterproof (very waterproof)
• Hall Effect Angle Sensor
• 4 Pole Brushless Motor
• Voltage 3 to 4s Lipo
• JST Direct Power plug
• Integrated Over-Voltage Snubber
• All Steel Gears
• CNC Aluminum case
• Weight 2.32oz / 66gm
• Dimension (LWH): 1.60x.79x1.16 / 40.8x20.2x29.5mm
• Torque: 700oz@12.6v / 800@14.4v / 900@16.8v
• Speed: .10sec@12.6v / .09sec@14.4v / .08sec@16.8v
• Output gear: Standard 25T Spline
