Revolver 050 2200kv

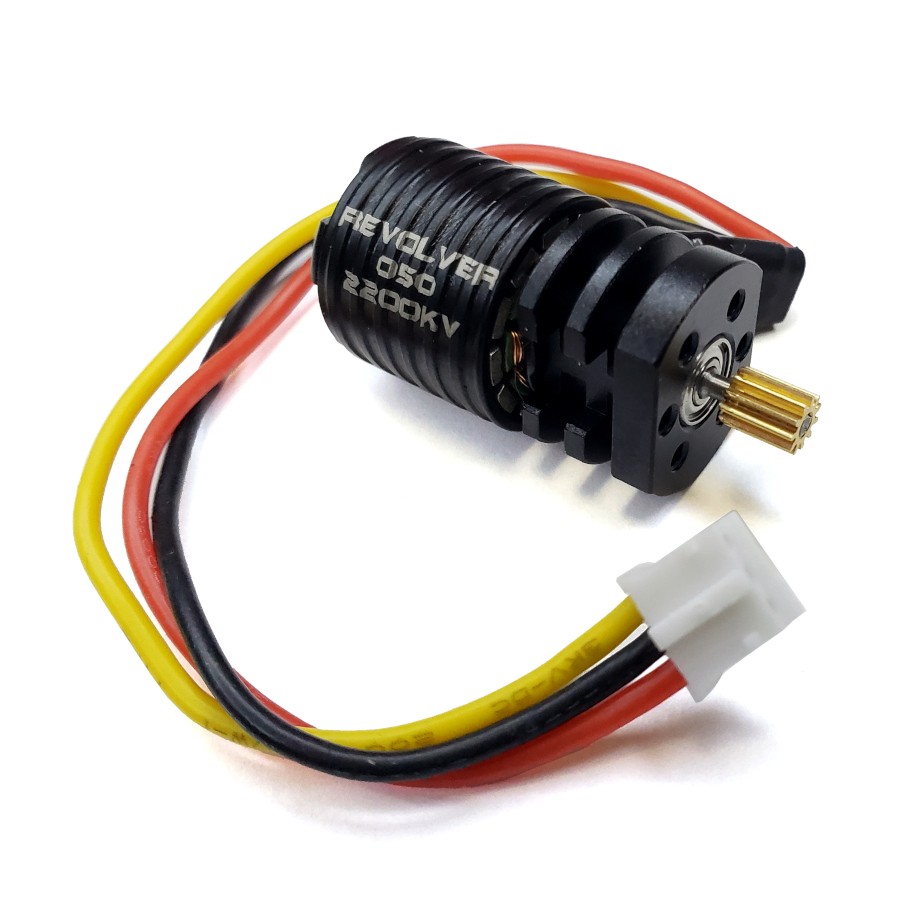

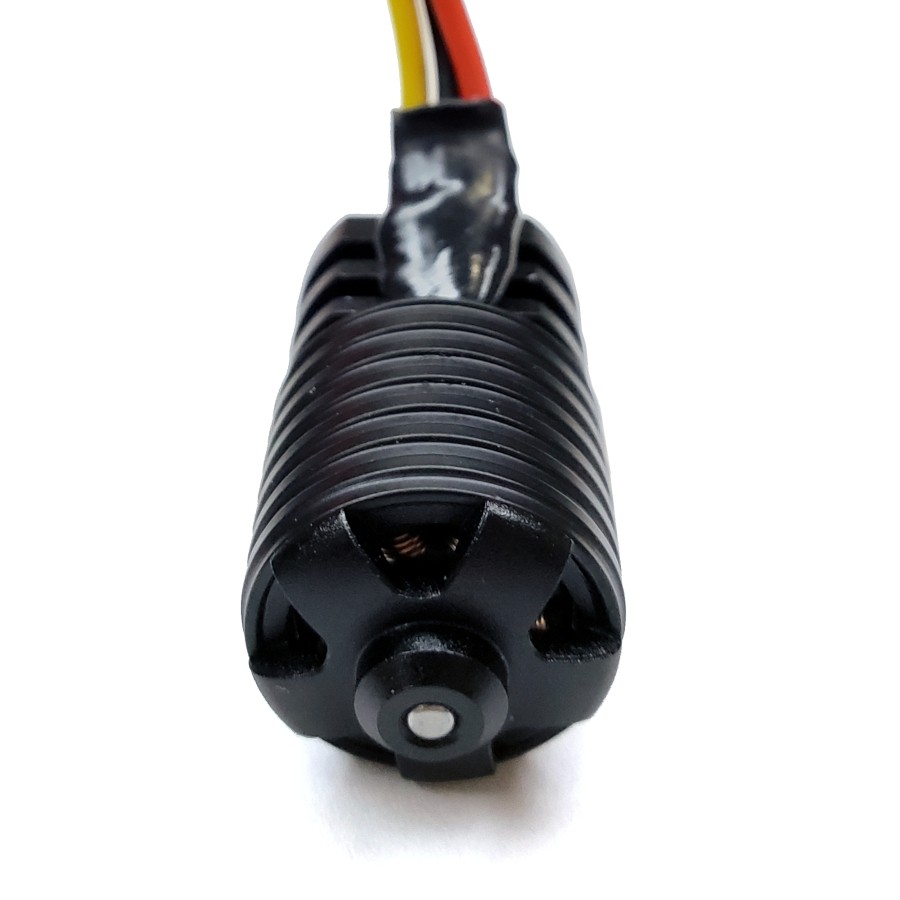

The Holmes Revolver 050

• 2200kv
• 2-3s lipo
• 030 motor, 050 motor, and 9mm mounting pattern
• 1.5mm shaft with 11 tooth Mod.3 brass pinion
• 12 pole 9 slot
• 11mm OD x 12mm L stator
• 20 grams
• 16 x 29mm
• Holmes magnetics and housing
• Standard Micro 3 pin plug

The Holmes Revolver 050 is a small outrunner with universal 030, 050, and 9mm bolt pattern for mini and micro rig use. The shape of the motor fits in stock SCX24, FCX24, and SCX30 chassis, plus most aftermarket transmissions and motor plates. Long stator design fills the full 050 motor frame and generates high torque and holding power, this thing is a little beast! You will need a brushless ESC to power the motor, it is not compatible with stock brushed ESCs. 2200kv version is perfect for general crawling and trail use.  3500kv for when you want to get a little wild!

Double check that the motor does not rub anything after installation, this will damage the motor and your rig.  In our experience it does not rub on stock SCX24, FCX24, and SCX30 builds with properly aligned stock pinion mesh.

1 year warranty.  Does not cover overheating, water damage, or improper installation damages.
